SGT MOS
Part Number Download Status Circuit Type Process

ESD

Yes/No

VDS

V

VGS

V

ID

A

VGS(TH)

V

RDS(mΩ)@VGS

10V Typ

RDS(mΩ)@VGS

10V Max

RDS(mΩ)@VGS

4.5V Typ

RDS(mΩ)@VGS

4.5V Max

 Package
Reset
Reset All
Active
OK
Reset
Dual-N
Single-N
OK
Reset
SGT
OK
Reset
No
OK
Reset
OK
Reset
±20
OK
Reset
OK
Reset
1.2~2.3
1.3.~2.5
1.3~2.3
1.3~2.4
1.3~2.5
1.4~2.4
1.4~2.6
1.5~2.5
1.5~2.6
2.0~3.2
2.2~3.5
2.2~3.8
2.3~3.3
2.3~3.7
2.4~3.5
2.4~3.8
2.5~3.5
2.6~3.4
2.6~3.5
2~4
OK
Reset
OK
Reset
OK
Reset
OK
Reset
OK
Reset
PDFN3.3×3.3-8L
PDFN5×6-8L
PDFN5×6-8L-A
PDFN5×6-8L-P
STOLL-5L
TO-252-2L
TOLL-8L
OK
Reset
AD-CJTSR90SN04AL
Active
Single-N
 SGT
 No
 40
 ±20
 321
 1.3~2.3
 0.71
 0.9
 1.08
 1.5
 STOLL-5L
AD-CJTSR90SN04CH
Active
Single-N
 SGT
 No
 40
 ±20
 333
 2.2~3.8
 0.83
 1
 -
 -
 STOLL-5L
AD-CJTS1R3SN04AH
Active
Single-N
 SGT
 No
 40
 ±20
 260
 2.0~3.2
 0.92
 1.3
 -
 -
 STOLL-5L
AD-CJTL2R0SN10AH
Active
Single-N
 SGT
 No
 100
 ±20
 245
 2.6~3.5
 1.6
 2
 -
 -
 TOLL-8L
AD-CJTLR77SN04AH
Active
Single-N
 SGT
 No
 40
 ±20
 456
 2.4~3.5
 0.6
 0.77
 -
 -
 TOLL-8L
AD-CJAN7R4SN10AH
Active
Single-N
 SGT
 No
 100
 ±20
 86
 2.6~3.4
 5.6
 7
 -
 -
 PDFN5×6-8L
AD-CJAN012SD04AH
Active

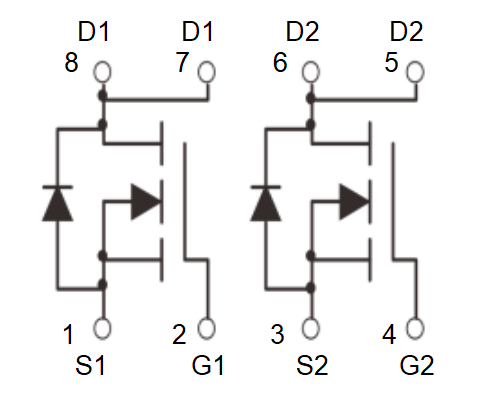

Dual-N
 SGT
 No
 40
 ±20
 40
 2.5~3.5
 9.1
 12
 -
 -
 PDFN5×6-8L-A
AD-CJAN013SD06AL
Active
Dual-N
 SGT
 No
 60
 ±20
 40
 1.5~2.6
 9.5
 13
 -
 -
 PDFN5×6-8L-A
AD-CJAN020SD10BH
Active
Dual-N
 SGT
 No
 100
 ±20
 30
 2~4
 15.5
 20
 -
 -
 PDFN5×6-8L-A
AD-CJAN025SD04AH
Active
Dual-N
 SGT
 No
 40
 ±20
 30
 2.3~3.7
 15
 20
 -
 -
 PDFN5×6-8L-A
AD-CJAN026SD10AL
Active
Dual-N
 SGT
 No
 100
 ±20
 25
 1.5~2.5
 21
 26
 27
 38
 PDFN5×6-8L-A
AD-CJAN4R0SD04AH
Active
Dual-N
 SGT
 No
 40
 ±20
 96
 2.5~3.5
 3.4
 4.2
 -
 -
 PDFN5×6-8L-A
AD-CJAN5R6SD04AH
Active
Dual-N
 SGT
 No
 40
 ±20
 40
 2.3~3.3
 4.8
 6
 -
 -
 PDFN5×6-8L-A
AD-CJAN5R8SD04CH
Active
Dual-N
 SGT
 No
 40
 ±20
 40
 2.2~3.8
 4.5
 5.8
 -
 -
 PDFN5×6-8L-A
AD-CJAN7R0SD04AH
Active
Dual-N
 SGT
 No
 40
 ±20
 40
 2.5~3.5
 5.6
 7
 -
 -
 PDFN5×6-8L-A
AD-CJAN9R0SD04CH
Active
Dual-N
 SGT
 No
 40
 ±20
 40
 2.2~3.5
 7.2
 9
 -
 -
 PDFN5×6-8L-A
AD-CJAN9R0SD04CL
Active
Dual-N
 SGT
 No
 40
 ±20
 40
 1.3~2.5
 7
 9
 -
 -
 PDFN5×6-8L-A
AD-CJAB011SN06AL
Active
Single-N
 SGT
 No
 60
 ±20
 45
 1.5~2.6
 9
 11
 12
 16
 PDFN3.3×3.3-8L
AD-CJAB7R4SN04CL
Active
Single-N
 SGT
 No
 40
 ±20
 51
 1.3~2.5
 6.3
 7.4
 10.2
 12.5
 PDFN3.3×3.3-8L
AD-CJAB7R5SN04CL
Active
Single-N
 SGT
 No
 40
 ±20
 51
 1.4~2.6
 6.2
 7.5
 10.2
 14
 PDFN3.3×3.3-8L
